KV-R type (bituminous / brown coal)

Name	Minimum	Maximum	Unit
Capacity	4,7	23,3	MW
Capacity	3	19	Gcal/g
Output pressure	13	22	MPa (kgf/cm²)
Output water temperature	70	150	°C
Efficiency	81,1	83	%

Name	Fuel type	Capacity, MW	Capacity, Gcal/g	Output pressure, MPa (kgf/cm²)	Output water temperature, °C	Efficiency, %

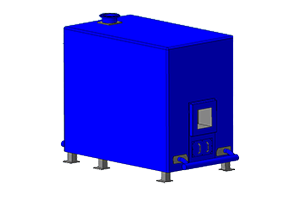

KV-TS-4-150	bituminous / brown coal	4.7	3	13	70-150	81,1
KV-TS-6,5-150	bituminous / brown coal	7.6	6	13	70-150	82
KV-TS-10-150P	bituminous / brown coal	11.6	9	22	70-150	83,1/ 82,5
KV-TSV-10-150P	bituminous / brown coal	11.6	9	22	70-150	83,0/ 82,0
KV-TS-20-150P	bituminous / brown coal	23.3	19	22	70-150	83
KV-TSV-20-150P	bituminous / brown coal	23.3	19	22	70-150	83/81,5
