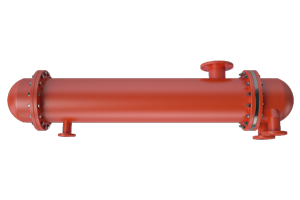

Steam-water heaters

Name	Minimum	Maximum	Unit
Body diameter	325	820	mm
Length (L)	2606	4135	mm
Tube quantity	68	792	pcs
Weight	390	2600	kg
Heating steam pressure	0,2	0,7	MPa
Сalorific capacity	0,58	18,10	Gcal/h

Body diameter, mm	Length (L), mm	Tube quantity, pcs	Weight, kg	Heating steam pressure, MPa	Сalorific capacity, Gcal/h
325	2606	68	390	0.2	0.58
325	3606	68	485	0.7	1.63
325	3606	68	510	0.7	1.13
426	2650	124	610	0.2	1.07
480	2720	176	790	0.2	1.52
426	3650	124	730	0.7	2.98
426	3650	124	730	0.7	2.08
530	2785	232	900	0.2	1.99
480	3720	176	931	0.7	4.22
480	3720	176	931	0.7	2.94
530	3785	232	1090	0.7	5.57
530	3785	232	1090	0.7	3.88
630	2885	392	1300	0.2	3.38
720	2985	560	1636	0.2	5.02
630	3835	392	1565	0.7	9.20
630	3835	392	1565	0.7	6.55
820	3135	792	1615	0.2	6.84
720	3985	560	2000	0.7	13.20
720	3985	560	2000	0.7	9.40
820	4135	792	2600	0.7	18.10
820	4135	792	2600	0.7	13.30
