MS 224
| General information | ||
|---|---|---|
| Name: | MS 224 | |
| Equipment type: | Pulling block chains | |
| Description for MS 224 |
|---|
| Pulling block chains are widely used in shipbuilding, machine-building industry, metallurgy, wood-pulp and paper industry, sugar refining industry, in water treatment plants, industrial transportation facilities, in drives of conveyors, elevators, road engineering and conveyors for different purposes. |
| Characteristics | ||
|---|---|---|
| Pitch, t: | 160-500 | mm |
| Plate thickness (S) / Bushing bore diameter (S) min: | 8,0 | mm |
| Ultimate tensile strength: | 224 (22400) | kgf |
| Dimensions | ||
|---|---|---|
| Pin length (b1) max: | 90 | mm |
| Internal plates distance (b3) min: | 42 | mm |
| (b4) max: | - | mm |
| D: | 20,3 | mm |
| D1: | 31,0 | mm |
| D2: | 41,0 | mm |
| D3: | 53,0 | mm |
| Height (H): | 72 | mm |
| Plate thickness (S) / Bushing bore diameter (S) min: | 8,0 | mm |

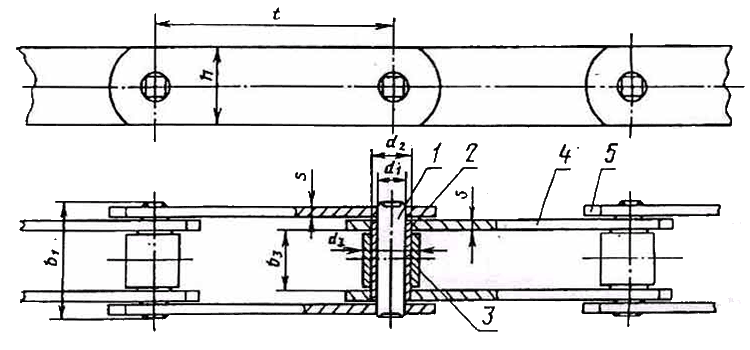

| Overall drawing MS 224 * |
|---|
|
