10s-5-2-1
| General information | ||
|---|---|---|
| Equipment type: | Control valves - 10s type | |
| Subtype: | Medium parameters valves | |
| Working medium: | water | |
| Diameter, DN: | 20 | mm |
| Max pressure differential: | 1 | MPa |
| Description for 10s-5-2-1 |
|---|
| Control valves are the most used valve type designed for continuous or discrete adjustment of flow and pressure. |
| Characteristics | ||
|---|---|---|
| Diameter, DN: | 20 | mm |
| Max pressure differential: | 1 | MPa |
| Temperature: | 280 | °C |
| Torque of a spindle?: | 80 | |
| Number of revolutions: | 5 | |
| Working stroke: | 20 | mm |
| Pressure, PN: | 37.3 | MPa |
| Dimensions | ||
|---|---|---|
| D1(D3): | 20 | mm |
| D2(D4): | 32 | mm |
| Height (H): | 260 | mm |
| Length (L): | 160 | mm |
| A: | 46 | mm |
| Weight: | 5.8 | kg |
| Drive | ||
|---|---|---|
| Control type: | М | |
| Actuator type: | - | |
| Actuator power: | - | kW |
| Stroke time: | - | s |

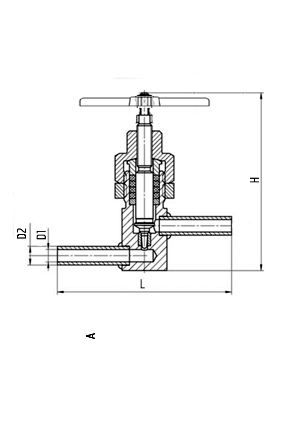

| Overall drawing 10s-5-2-1 * |
|---|
|
