4s-3-3
| General information | ||
|---|---|---|
| Equipment type: | Check valves - 4s type | |
| Subtype: | Medium parameters valves | |
| Working medium: | water-steam | |
| Diameter, DN: | 150 | mm |
| Hydraulic resistance cofficient: | 0.9 | |
| Description for 4s-3-3 |
|---|
| Check valves are designed to prevent a change of fluid flow direction in process systems. |
| Characteristics | ||
|---|---|---|
| Diameter, DN: | 150 | mm |
| Temperature: | 450 | °C |
| Pressure, PN: | 10 | MPa |
| Hydraulic resistance cofficient: | 0.9 | |
| Dimensions | ||
|---|---|---|
| Height (H): | 315 | mm |
| D2: | 160 | mm |
| D1: | 142 | mm |
| Length (L): | 550 | mm |
| A: | 120 | mm |
| Weight: | 125 | kg |

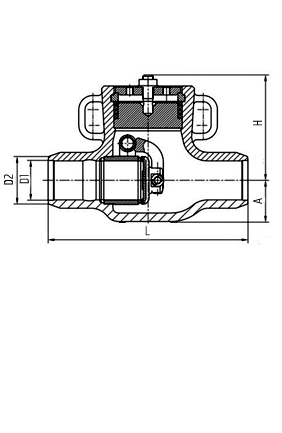

| Overall drawing 4s-3-3 * |
|---|
|
