R2-200-630
| General information | ||
|---|---|---|
| Name: | R2-200-630 | |
| Equipment type: | Detachable conveyor chains | |
| Description for R2-200-630 |
|---|
| Detachable conveyor chains are widely used in different conveyors and other mechanical handling equipment. |
| Characteristics | ||
|---|---|---|
| Ultimate tensile strength: | 64242 | kgf |
| 1 meter chain weight: | 16.5 | kg |
| Dimensions | ||
|---|---|---|
| Pitch, t: | 200 | mm |
| Pitch, Tc: | 400 | mm |
| Link width, B, max: | 66 | mm |
| External links distance, min: | 52 | mm |
| Pin length l, max: | 107 | mm |

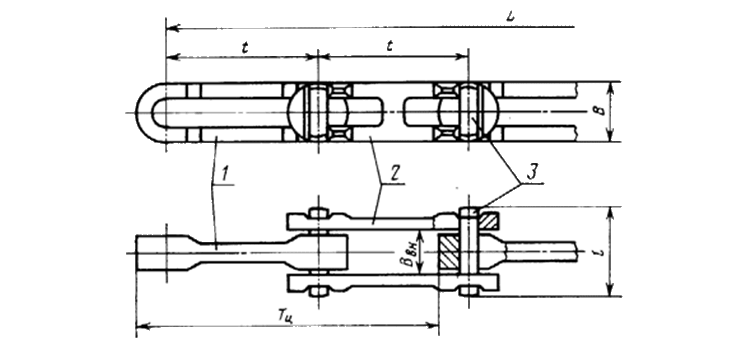

| Overall drawing R2-200-630 * |
|---|
|
